1. 빔 클램프(BEAM CLAMP)

Model No. SH950-1




※ 기존제품“⊂”TYPE : 좌우로 돌아간다.
※ 기존제품“ㄷ”TYPE : 좌우로 돌지않는다.
※ 배관을 지탱해 주는 전산볼트 체결되는 부분을“후렌지너트”를 부착하여 하중이 더욱 견고하고 안전하다.

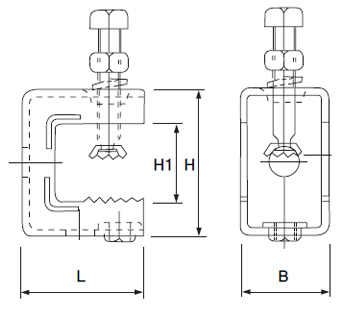

※ 생산규격(3종) : ①小 : B(30m/m) H1(20m/m) H(34m/m) L(35m/m)
②中 : B(30m/m) H1(25m/m) H(45m/m) L(44m/m)
③大 : B(39m/m) H1(30m/m) H(49m/m) L(49m/m)

Model No. SH950


기존모델 신모델




빔클램프행거 (단조)









2. Riser Clamp - SH260 / SH260-A / SH260-B

Model No. SH260

SIZE RANGE 25mm through 200mm
MATERIAL Carbon steel, rolled steel
FINISH Black or electro galvanized
SERVICE For support and steadying of steel pipe
riser either insulated or bare, cast iron
pipe or conduit, so supports pipe cover
or insulation
ORDERING EX) SH 260-80


◎ Dimension(mm)
pipe size A T x B F weight kg
25 75 1.6 x 25 M6 0.10
32 83 1.6 x 25 M6 0.11
40 89 1.6 x 25 M6 0.12
50 100 2.0 x 30 M6 0.19
65 117 2.0 x 30 M6 0.22
80 140 2.3 x 40 M10 0.39
100 166 2.3 x 40 M10 0.45
125 190 2.3 x 40 M10 0.51
150 220 3.0 x 50 M12 0.61
200 268 3.0 x 50 M12 0.72


Model No. SH260-A 입상관용

SIZE RANGE 15mm through 550mm
MATERIAL Carbon steel, Brass
FINISH Black or Galvanized
MAXIMUM TEMPERATURE 400℃
ORDERING Specify model name, pipe size.
EX) SH 260A-150


◎ Dimension(mm)
pipe size max. recom
load, kg		 steel size A C D E G L
15 280 6 x 32 16 30 M12 30 10 260
20 280 6 x 32 16 30 M12 30 10 265
25 280 6 x 32 16 30 M12 30 10 270
32 280 6 x 32 16 30 M12 30 10 280
40 420 6 x 38 19 30 M12 30 10 290
50 420 6 x 38 19 30 M12 30 25 310
65 420 6 x 38 19 30 M12 30 25 350
80 420 6 x 38 19 30 M12 30 25 390
100 900 9 x 50 25 30 M12 30 25 460
125 900 9 x 50 25 30 M16 40 30 470
150 1.600 12 x 65 32.5 30 M16 40 30 560
200 1.600 12 x 65 32.5 40 M18 40 30 610
250 2.100 16 x 75 37.5 40 M22 40 35 710
300 2.100 16 x 75 37.5 40 M22 50 35 750
350 2.100 16 x 75 37.5 40 M22 50 35 790
400 2.800 19 x 90 45 50 M24 50 40 840
450 2.800 19 x 90 45 50 M24 50 40 1,050
500 2.800 19 x 90 45 50 M24 50 40 1,150


Model No. SH260-B

SIZE RANGE 20mm through 350mm
MATERIAL Carbon steel, rolled steel
FINISH Electro galvanized
SERVICE For support and steadying of steel pipe
riser either insulated or bare, cast iron
pipe or conduit, so supports pipe cover
or insulation
MAXIMUM TEMPERATURE 350℃
ORDERING Specify model name, pipe size.
EX) SH 260B-80


◎ Dimension(mm)
pipe size A T x B F maximum
recommended
load, kg
 weight
kg
20 240 4.5 x 32 M8 x 40 120 0.65
25 240 4.5 x 32 M8 x 40 120 0.65
32 250 6.0 x 32 M8 x 40 120 0.90
40 260 6.0 x 32 M8 x 40 120 0.90
50 270 6.0 x 32 M10 x 40 120 1.01
65 290 6.0 x 32 M10 x 40 180 1.05
80 310 6.0 x 32 M10 x 40 250 1.12
90 330 6.0 x 32 M12 x 50 300 1.52
100 340 6.0 x 32 M12 x 50 360 1.55
125 370 6.0 x 32 M12 x 50 520 2.23
150 390 6.0 x 32 M12 x 50 700 2.42
200 470 9.0 x 50 M16 x 65 1135 4.50
250 510 9.0 x 50 M16 x 65 1135 5.10
300 580 12.0 x 50 M16 x 65 1225 7.60
350 610 12.0 x 50 M16 x 65 1225 8.30







3. Riser Clamp - SH260-C / SH260-D / SH260-E / SH260-F

Model No. SH260-C Split

SIZE RANGE 15mm through 450mm
MATERIAL Carbon steel
FINISH Black or galvanized; furnished black unless otherwise specified.
SERVICE Recommended for the suspension of
cold pipelines or hot lines where little or
no insulation in required
MAXIMUM TEMPERATURE 400℃
ORDERING Specify model name, pipe size.
EX) SH 260C-80


◎ Dimension(mm)
pipe
size		 max, recom, Load, kg
for service temperature		 steel
size 		A B C E F K weight
(approx)
kgs each
350℃ 400℃
15 225 200 3.2 x 25 25 25 10 40 M8 40 0.13
20 225 200 3.2 x 25 30 30 10 45 M8 45 0.15
25 225 200 3.2 x 25 35 30 10 50 M8 45 0.16
32 225 200 3.2 x 25 35 35 10 50 M8 50 0.17
40 365 325 3.2 x 25 40 40 10 55 M8 55 0.20
50 470 420 6 x 38 55 55 15 70 M12 75 0.50
65 470 420 6 x 38 65 65 15 85 M12 85 0.54
80 470 420 6 x 38 75 70 15 95 M12 90 0.64
100 470 420 6 x 38 90 85 20 110 M16 105 1.04
125 470 420 6 x 38 105 100 20 125 M16 120 1.18
150 735 655 9 x 50 130 125 20 155 M20 150 2.45
200 735 655 9 x 50 155 150 25 180 M20 175 2.95
250 1,130 1,000 12 x 50 190 185 25 220 M24 215 6.17
300 1,130 1,000 12 x 50 215 210 25 245 M24 240 6.89
350 1,130 1,000 12 x 65 235 230 35 270 M24 265 9.30
400 1,130 1,000 12 x 65 260 255 35 295 M24 290 10.12
450 1,390 1,240 16 x 65 295 290 35 330 M24 325 14.33


Model No. SH260-D Heavy

SIZE RANGE 80mm through 1050mm
MATERIAL Carbon steel
FINISH Black or galvanized
SERVICE Recommended for the suspension of
heavy loads where little or no insulation
is required
MAXIMUM TEMPERATURE 400℃
ORDERING Specify model name, pipe size.
EX) SH 260D-500


◎ Dimension(mm)
pipe
size		 max, recom, Load, kg
for service temperature		 steel
size 		A B C E F K M weight
(approx)
kgs each
350℃ 400℃
80 1,530 1,370 9 x 50 80 75 26 105 M20 100 15 1.63
100 1,590 1,420 9 x 50 95 90 26 125 M24 120 15 2.49
125 1,590 1,420 9 x 50 110 105 26 140 M24 135 15 2.86
150 2,210 1,970 12 x 65 135 125 32 170 M24 160 20 5.31
200 2,210 1,970 12 x 65 160 155 32 195 M24 190 20 6.31
250 2,730 2,430 16 x 65 195 190 32 230 M30 225 20 10.12
300 2,940 2,510 19 x 75 235 230 43 280 M36 278 20 17.28
350 4,140 3,690 19 x 90 255 250 43 305 M36 300 20 21.23
400 4,140 3,690 19 x 90 280 275 43 330 M36 325 20 23.32
450 6,260 - 19 x 150 370 370 77 440 M48 440 75 59.01
500 6,940 - 24 x 125 405 405 77 475 M48 475 75 74.21
600 7,400 - 24 x 150 470 470 84 550 M56 550 85 97.61
700 8,170 - 24 x 200 520 520 84 600 M56 600 85 137.35
750 9,300 - 32 x 180 570 570 91 660 M64 660 90 165.75
800 10,780 - 32 x 200 595 595 91 685 M64 685 90 195.82
850 11,340 - 38 x 200 635 635 91 725 M64 725 90 242.13
900 12,700 - 38 x 200 675 675 91 770 M72 770 90 260.87
1050 15,880 - 45 x 250 760 760 91 855 M72 855 90 415.36


Model No. SH260-E Double Bolt

SIZE RANGE 20mm through 600mm
MATERIAL Carbon steel
FINISH Black or galvanized; furnished black
unless otherwise specified.
SERVICE Recommended for the suspension of
pipe requiring up to 100mm of insulation
and where flexibility of the clamp is
desirable within the limitation of tempera-
ture and loads shown below.
ORDERING Specify model name, pipe size.
EX) SH 260E-100


◎ Dimension(mm)
pipe
size		 max, recom, Load, kg
for service temperature		 steel
size 		A B C E F K weight
(approx)
kgs each
350℃ 400℃
20 430 390 4.5 x 25 65 25 10 75 M10 40 0.32
25 430 390 4.5 x 25 65 25 10 75 M10 40 0.34
32 430 390 4.5 x 25 70 30 10 80 M10 45 0.37
40 700 625 6 x 32 105 45 10 125 M16 60 1.04
50 700 625 6 x 32 130 55 25 150 M16 70 1.18
65 700 625 6 x 32 135 60 25 155 M16 75 1.22
80 700 625 6 x 32 150 70 25 170 M16 90 1.36
100 1,130 1,010 9 x 50 165 85 25 195 M20 115 3.04
125 1,130 1,010 9 x 50 180 100 30 210 M20 130 3.18
150 1,300 1,160 9 x 50 220 120 30 250 M24 155 5.22
200 1,300 1,160 9 x 50 245 145 30 280 M24 180 6.00
250 1,470 1,310 12 x 95 265 175 35 305 M24 210 8.98
300 1,470 1,310 12 x 95 290 200 35 330 M24 235 10.98
350 1,950 1,740 16 x 75 320 230 35 365 M30 275 17.10
400 1,950 1,740 16 x 75 350 255 40 395 M30 300 18.78
450 1,950 1,740 16 x 75 375 280 40 420 M30 325 20.37
500 2,490 2,230 19 x 75 405 315 40 450 M30 360 26.00
600 2,040 1,820 19 x 75 455 365 40 500 M36 415 29.90


Model No. SH260-F Heavy Duty Double Bolt

SIZE RANGE 150mm through 600mm
MATERIAL Carbon steel
FINISH Black or galvanized
SERVICE Recommended for the suspension of
pipe requiring up to 100mm of insulation
and where flexibility of the clamp is
desirable.
ORDERING Specify model name, pipe size.
EX) SH 260F-200 Recommended for
the suspension of pipe reduiring up to
100mm of insulation and where flexibility
of the clamp is desirable-within the
limitation of temperature and loads
shown below.


◎ Dimension(mm)
pipe
size		 max, recom, Load, kg
for service temperature		 steel
size 		A B C E F K weight
(approx)
kgs each
350℃ 400℃
150 1,590 1,420 9 x 65 225 120 46 260 M24 155 5.44
200 2,180 1,950 12 x 65 225 150 51 290 M30 185 8.39
250 2,500 2,230 12 x 90 290 185 54 335 M30 230 13.74
300 3,180 2,840 16 x 90 320 220 64 365 M36 265 19.05
350 4,310 3,850 19 x 100 345 245 64 395 M36 295 27.22
400 4,535 4,050 19 x 120 380 275 76 435 M42 330 36.29
450 6,260 5,590 24 x 100 410 315 91 465 M48 370 52.16
500 6,740 6,200 24 x 100 440 345 91 500 M48 410 63.50
600 7,395 6,600 24 x 100 490 395 91 565 M48 470 86.18
